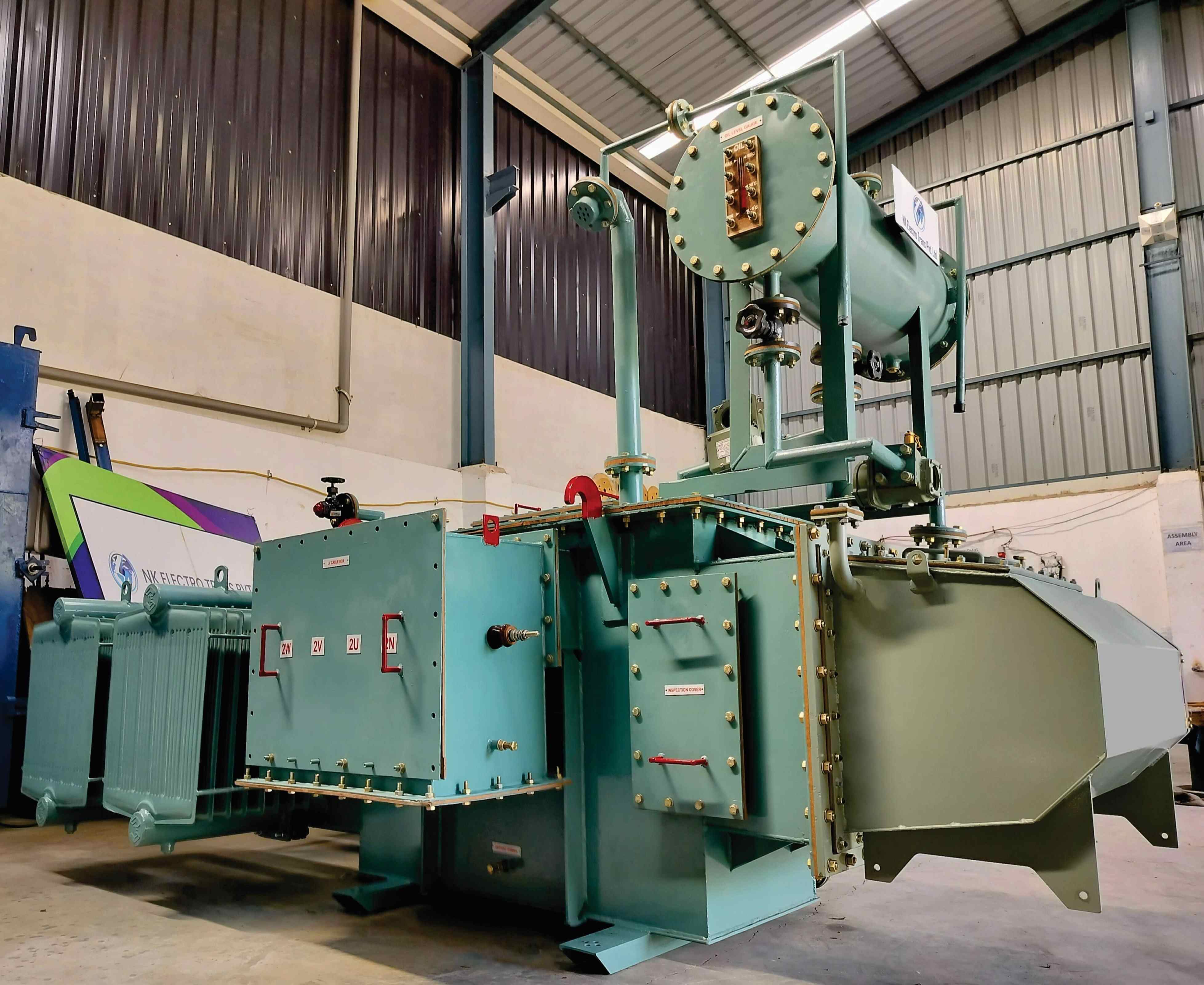

NK ELECTRO TRANS PRIVATE LIMITED is leading Dual Ratio Transformer Manufacturer. It is Special Transformer and What’s make it Special that is Dual Ratio Transformer Design that allows for operation at two different primary voltage levels, achieved by connecting the primary windings in series or series-parallel. Client have Flexibility to vary Input Voltage Source with vary Output Voltage.
Rating: 250KVA to 5000KVA
Material: Copper or Aluminum
Voltage Ratio: 33KV, 22KV, 11KV, 6.6KV, 3.3KV
Frequency: 50Hz, 60Hz or Customer Specified
Off Load Dual Ratio Transformer Tapping Range: 5tap, 7tap, 9tap, 17tap,
Customer Specified insteps of HV 2.5%
On Load Step Down Distribution Transformer Tapping Range: 9tap, 17tap,
Customer Specified insteps of HV 1.25%
Vector Group: All Vector Group (Dyn11, Dyn5 etc.)
Insulation Class: A Class
Inhouse Testing Facility: Up to 33KV
To Obtain Low Power Loss, More Reliability, High Efficiency
Modern Technology with Follow Design Standard:
IS 1180& IS-2026 Power Saving Transformer & IEC
Standard
Design to withstand Impulse, Thermal and Dynamic
Stress
